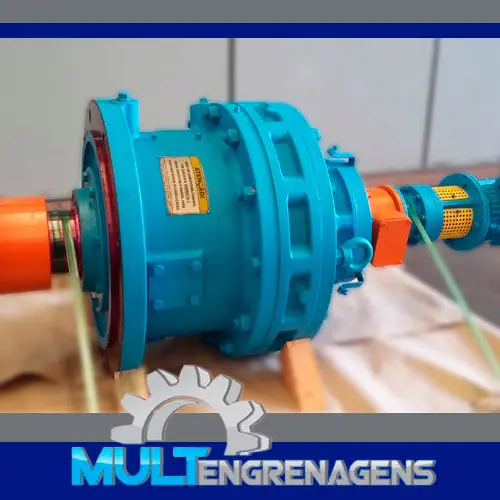

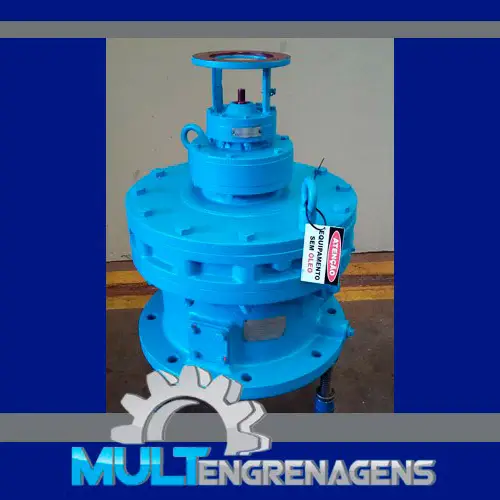

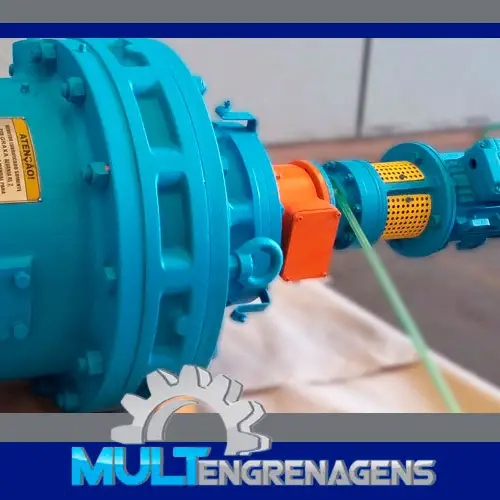

The repair of the Cycloidal Gearbox Sumitomo requires extreme precision and extensive experience, as it is responsible for reducing the input shaft speed of a device to increase the torque at its output shaft. This enables it to achieve a high-performance ratio in a compact size.
The operating principle of the Cycloidal Gearbox Sumitomo is based on motion transmission through what is known as the eccentric rotation of the input shaft. This rotation occurs off the central axis and is transferred to the cycloidal disc, which rotates in contact with the pins fixed in the support ring, subsequently transmitting motion to the next stage or directly to the output shaft. The speed reduction ratio achieved with the Cycloidal Gearbox Sumitomo is determined by the number of concave sections on the cycloidal discs. Throughout this process, 67% of the components remain in contact at all times, ensuring high performance and quiet operation.
The input shaft of the Cycloidal Gearbox Sumitomo is mounted eccentrically to the bearing, which induces a circular motion in the cycloidal disc. The disc then rotates independently within the Cycloidal Gearbox Sumitomo and around the support ring, as it is pushed against the pins/rollers. An essential aspect of this operating process is that the rotation direction is opposite to that of the input shaft, enabling the Cycloidal Gearbox Sumitomo to function effectively and maintain high operational efficiency, even in compact sizes.
The entire operational system of the Cycloidal Gearbox Sumitomo ensures excellent reduction ratios, making it an economically viable solution with long-term usability.
Mult Engrenagens is a specialized company offering a wide range of products in the transmission sector, including gears and gearboxes. Partnering with the best brands and manufacturers in the market, Mult Engrenagens is capable of meeting any demand with precision and reliability.
