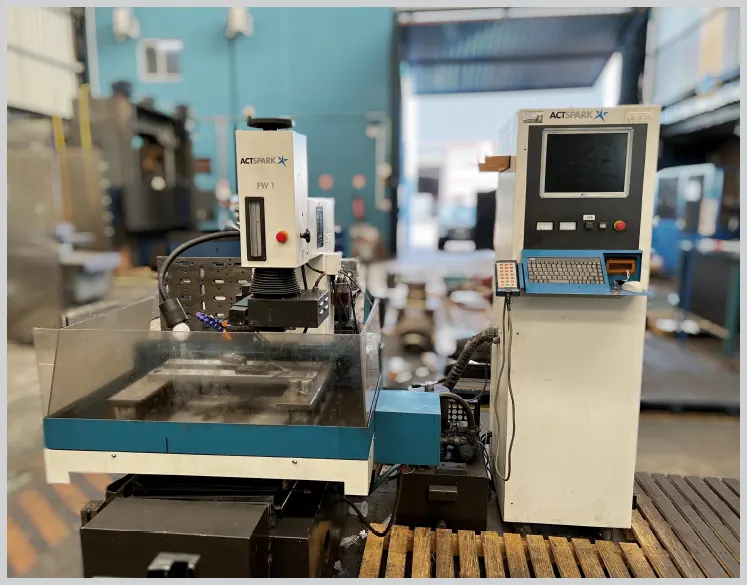

The electrical discharge machine (EDM) is an essential tool, particularly for machining components that require high precision and complex geometries. This equipment is ideal for processing hard materials and manufacturing intricate parts that often cannot be produced using conventional machining methods.
Types of Components
The EDM is capable of machining a variety of critical components for gearboxes, including: incluindo:
Gears: Essential for torque and speed transmission, often requiring complex cuts.cortes complexos.
Shafts: Load-bearing components that are vital for gearbox operation.
Crowns and Pinions: Requiring high precision in the teeth to ensure a perfect fit.
Inserts and Tools: Used in the manufacturing of other components, requiring intricate detailing.
Types of Machining Processes
EDM operates by removing material through electrical discharges, enabling high-precision machining. The main machining processes include:
Wire EDM Cutting: Ideal for machining complex contours, allowing the production of parts with detailed geometries and sharp angles. This method is widely used to create gear profiles and cavities in large components.
Disc EDM Cutting: Used for cutting flat surfaces or specific shapes, enabling the machining of edges and details in thicker components.
High-Precision Drilling: EDM excels at creating extremely small or deep holes, which are critical in components such as shafts and supports.
Finishing Processes
The finishing processes provided by EDM are crucial to ensuring the quality of machined components:
Fine Surface Finishing: EDM delivers excellent surface quality, with smooth finishes that reduce friction and enhance component performance.
Tolerance Precision: The ability to achieve strict tolerances is one of EDM’s key advantages, ensuring that machined parts fit perfectly within gearboxes.
Surface Treatments: The EDM process can be combined with other surface treatments to increase wear and corrosion resistance, extending the lifespan of components.
