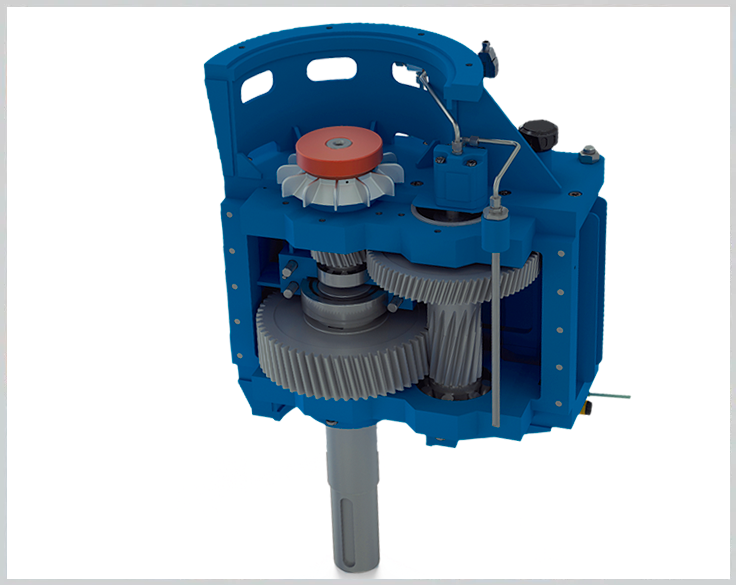

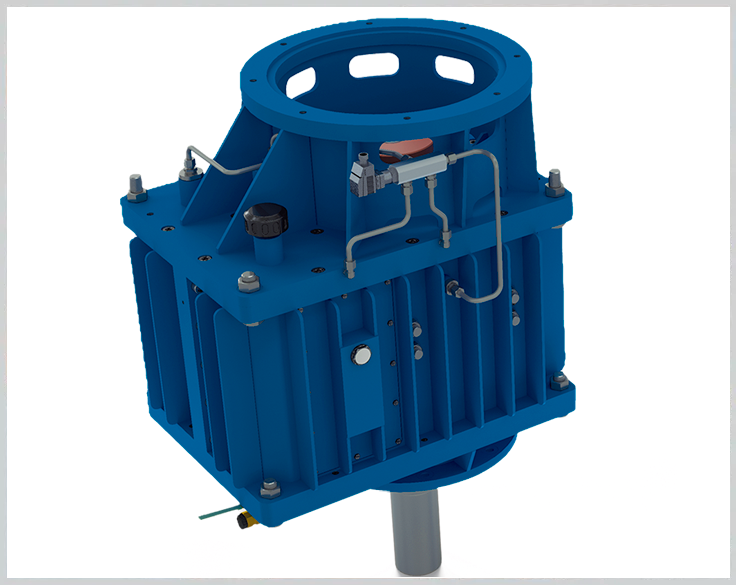

- Split Housing Design;
- Enhanced Heat Dissipation;
- Tapered Bearings;
- Forced Oil Lubrication System for All Bearings and Gearing;
- Fans on Input and Output Shafts for Thermal Dissipation;
- High Robustness in the Rotating Assembly and Entire Housing.
| Technical Specifications | |

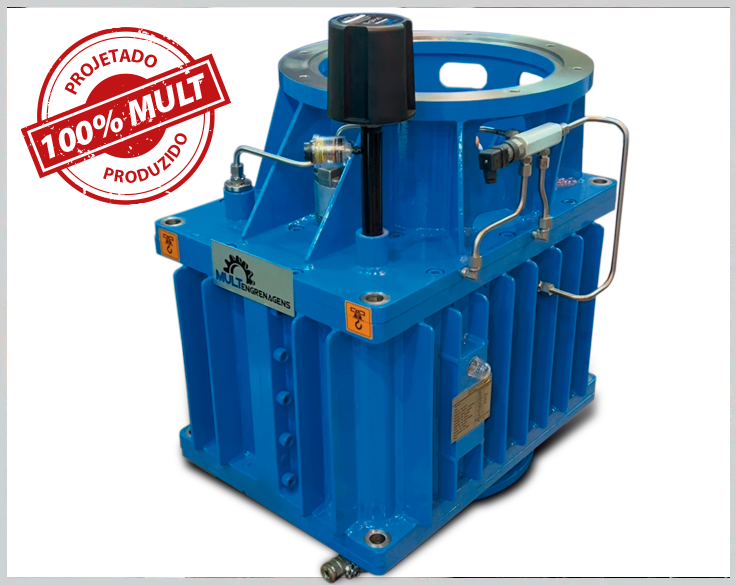

| Model: | Mult2-PVC-10,4-225 |
| Weight: | 720 kg |
| Input Speed: | 1.750 rpm |
| Transmission Ratio: | 1:10,4 |
| Power: | 110 kW (150 CV) |
| Service Factor: | 3,0 |
| Oil Viscosity: | ISO VG 320 EP |
