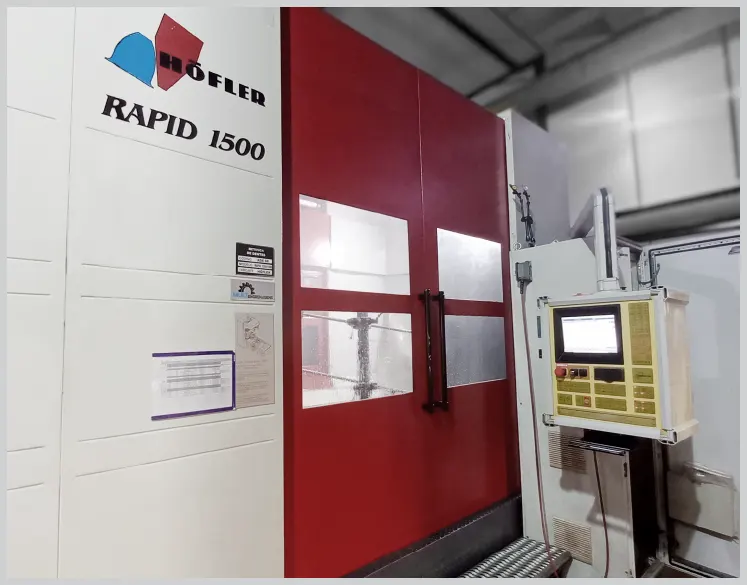

| HOFLER RAPID 1500 Gear Tooth Grinding Machine | |
| Model: | Rapid 1.250/1.500 |
| Manufacturer: | HOFLER |
| Maximum Diameter: | 1.500 mm |
| Minimum Diameter: | 50 mm |
| Maximum Module: | 18 |
| Minimum Module: | 1 |
| Tooth Profile Height: | 41 mm |
| Grinding Height Stroke: | 650 mm |
| Left + Right Tooth Angle: | 45° |
| Load Capacity: | 6.000 kg |
The gear tooth grinding machine, capable of handling diameters ranging from 50 mm to 1,500 mm, enables the precise machining of a wide variety of gears, including cylindrical, bevel, helical, and spur gears, as well as pinions and gear rings.

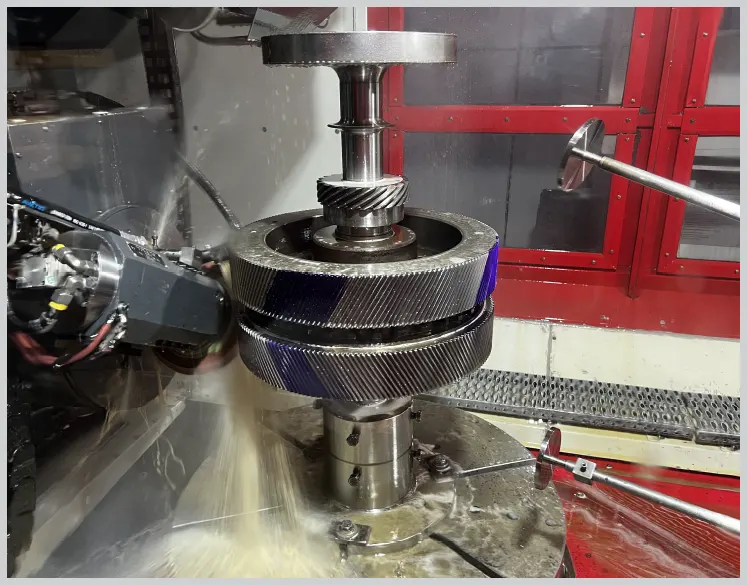

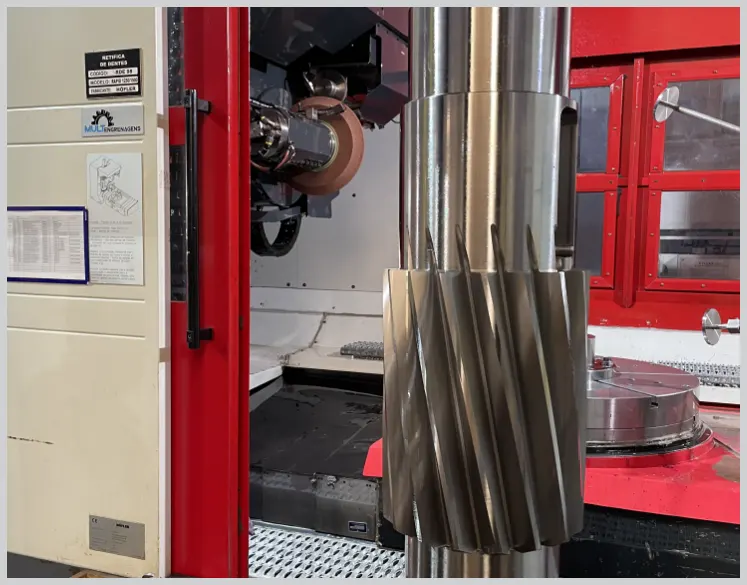

This grinding process ensures high-precision tooth profiles and proper gear alignment. It performs different types of cuts and finishing operations, such as rough grinding, which removes excess material and corrects imperfections, and fine finishing, which guarantees the exact tooth profile. Additionally, the machine performs gear tooth grinding and polishing, resulting in a smooth and uniform surface. These high-precision finishes are essential for reducing friction, minimizing wear, and enhancing gearbox efficiency.
The machine’s ability to achieve tight tolerances and produce surfaces with low roughness levels contributes to the quality and reliability of repaired gearboxes. These components are crucial for torque transmission and speed adjustment within gearboxes, directly impacting the equipment’s efficiency and durability.
